Flash Profiler

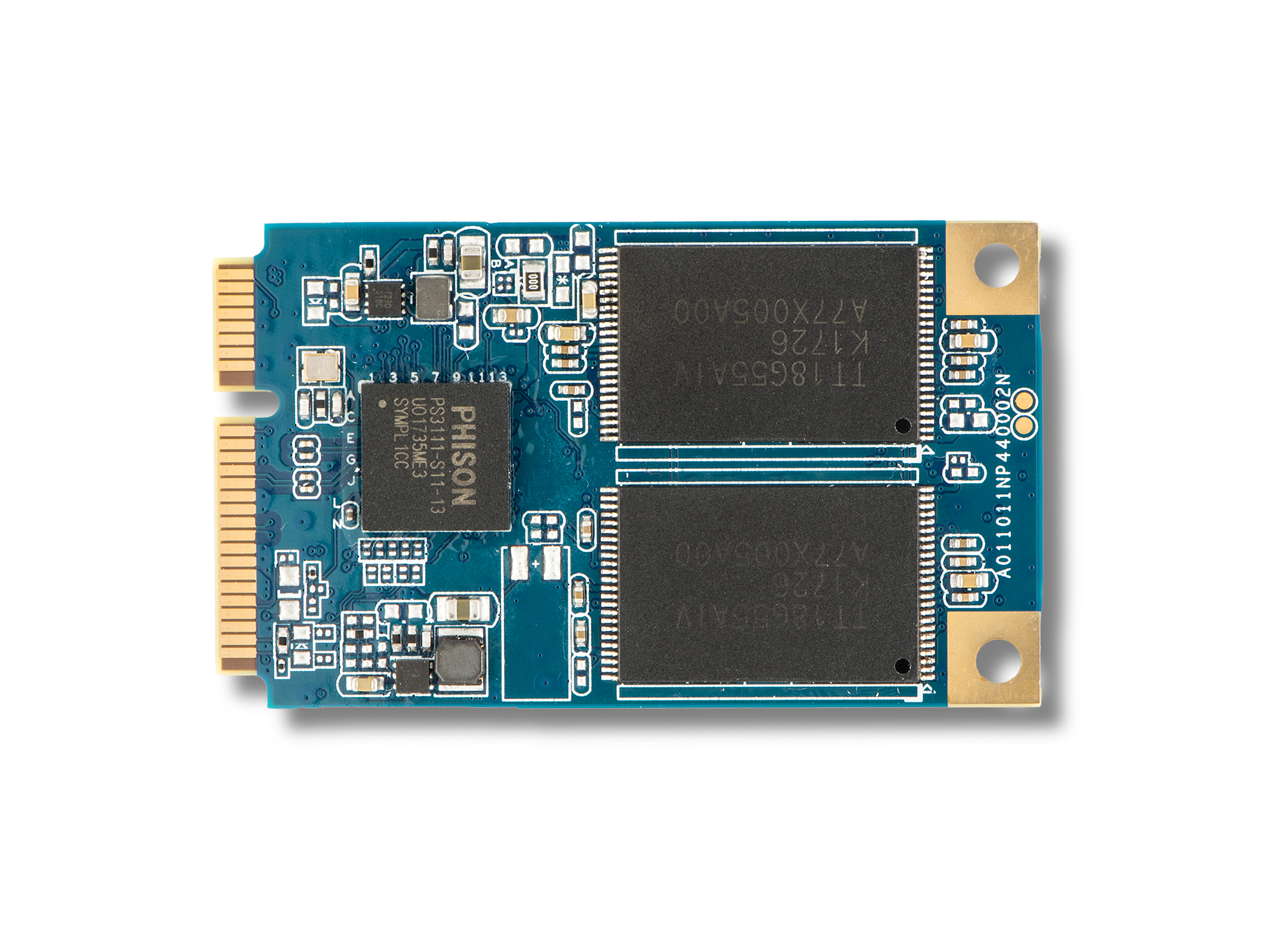

Acon AM110 Industrial mSATA III SSD

acon Industrial mSATA delivers all the advantages of flash disk technology with the Serial ATA Interface and is fully compliant with the standard mSATA form factor, known as JEDEC MO-300 standard. The power consumption of the mSATA is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model Nr.
AM110 Industrial mSATA
Form Factor
MO-300 SATA III
Kapazität
16GB - 512GB
Flash Typ
MLC
MTBF (Std.)
>2 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
550MB/s
Schreibgeschwindigkeit
490MB/s

Acon AM110 Seal mSATA III SSD

acon Seal mSATA products will be fully coated with a special sealing compound, which hermetically seals the sensitive electronic components within and protects your data reliably against liquids, dust, dirt, shock and vibration. acon Seal mSATA delivers all the advantages of flash disk technology with the Serial ATA Interface and is fully compliant with the standard mSATA form factor, known as JEDEC MO-300 standard.

Model Nr.
AM110 Seal mSATA
Form Factor
MO-300 SATA III
Kapazität
16GB - 512GB
Flash Typ
MLC
MTBF (Std.)
>2 Mio
Standard Temperatur
-
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
550MB/s
Schreibgeschwindigkeit
490MB/s
Coating
elektronisches Gießharz

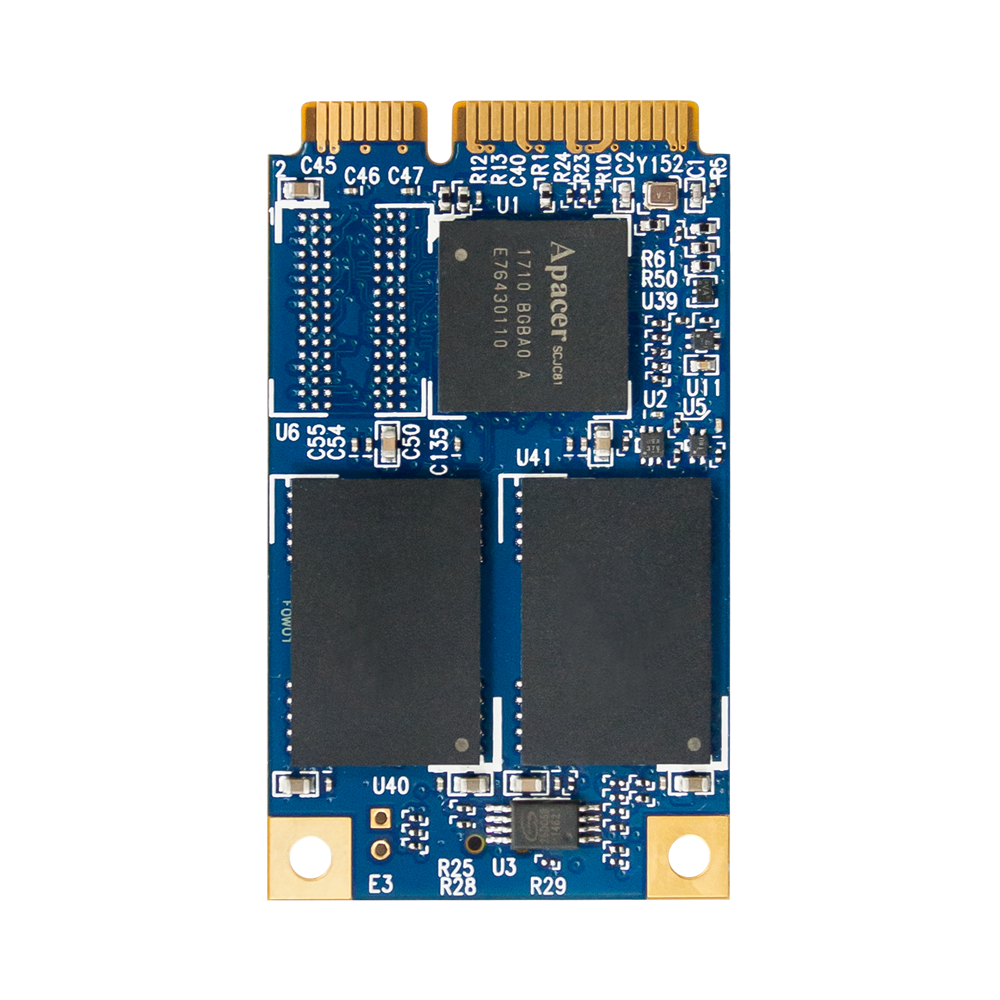

Apacer mSATA SM210-300

Apacer SM210-300 is a well-balanced solid-state disk (SSD) drive with compact form factor (JEDEC MO-300) and great performance. Designed in SATA 6.0 Gbps interface, the mSATA SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading embedded or server operations with space constraints for host computing systems.

Model Nr.
SM 210-300
Form Factor
MO-300 SATA III
Kapazität
8GB - 512GB
Flash Typ
MLC
MTBF (Std.)
>1 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
505MB/s
Schreibgeschwindigkeit
360MB/s

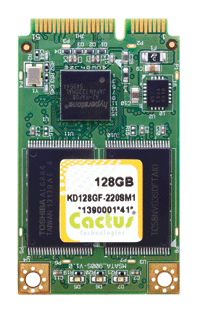

Cactus mSATA Series 240

The best mSATA SSD is one that meets the OEM's application requirements for reliability and longenvity while providing a price point which doesn't throw the project over budget. MSATA drives have a physical size of 50.8 x 29.85mm making them a great solution for small form factor designs.

Model Nr.
KD16GF-240SM1
Form Factor
mSATA III
Kapazität
8GB - 512GB
Flash Typ
MLC
MTBF (Std.)
100 TSD
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
560MB/s
Schreibgeschwindigkeit
360MB/s

Innodisk mSATA SSD 3ME3

Innodisk mSATA 3ME3 is designed with mSATA form factor by MO-300/MO-300B which established by JEDEC, and support SATA III standard (6.0Gb/s) with excellent performance.

Model Nr.
mSATA 3ME3
Interface
MO-300A SATA III 6.0 Gb/s
Kapazität
8GB~512GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
400 MB/s
Schreibgeschwindigkeit
200 MB/s

Innodisk mSATA SSD 3ME4

InnodiskmSATA 3ME4 is SATA III 6.0 Gb/s flash based disk, which adopts latest Marvell NAND controller with Innodisk’s exclusive L³ FW architecture.

Model Nr.
mSATA 3ME4
Interface
MO-300A SATA III 6.0 Gb/s
Kapazität
8GB~256GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
530 MB/s
Schreibgeschwindigkeit
210 MB/s

Innodisk mSATA SSD 3MG2-P

Innodisk mSATA 3MG2-P is SATA III 6Gb/s flash based disk, which delivers excellent performance, especially in random data transfer rate, and which offers reliability making it the ideal solution for a variety of applications, including embedded system, industrial computing, and enterprise field.

Model Nr.
mSATA 3MG2-P
Form Factor
MO-300A SATA III 6.0 Gb/s
Kapazität
8GB~512GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520 MB/s
Schreibgeschwindigkeit
355 MB/s

Innodisk mSATA SSD 3MG2-P AES

Innodisk mSATA 3MG2-P is designed with AES engine, which is built-in the controller. When controller receives the data package from host, AES engine encrypts the data package and save the encrypted data into NAND flash.

Model Nr.
mSATA 3MG2-P AES
Form Factor
MO-300A SATA III 6.0 Gb/s
Kapazität
16GB~512GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
530 MB/s
Schreibgeschwindigkeit
370 MB/s

SanDisk Z400s mSATA

The SanDisk® Z400s is available in mSATA, 2.5” SATA and M.2 form factors and capacities ranging from 32GB to 256GB3 to fit a broad range of applications. We believe storage should fit your needs, not the other way around. Exceptional reliability, low maintenance and high performance all add up to a lower total cost of ownership.

Model Nr.
Z400s
Interface
mSATA SATA III
Kapazität
32GB - 128GB
Flash Typ
MLC
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-
Lesegeschwindigkeit
546MB/s
Schreibgeschwindigkeit
342MB/s

Virtium Storfly mSATA SSD MLC

StorFly® mSATA (MO-300) SSDs are optimal storage solutions for medical, networking and embedded applications that require high performance in a small form factor.
StorFly mSATA offers a superior solution for system designs that implement SATA connectivity over a widely-used socket that has the added benefit of industry-standard clamping mechanism, making them ideal for wearable or vehicle computers and other high shock and vibration applications.
in many military and ruggedized portable computers and data recorders.

Model Nr.
CE
Interface
mSATA SATA III
Kapazität
30GB-960GB
Flash Typ
MLC
MTBF (Std.)
100 TSD
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
300MB/s
