Flash Profiler
microSD



acon microSD Card L/LX31

The Micro Secure Digital (microSD) card version 6.10 is fully compliant to the specification released by the SD Card Association. The Command List supports [Part 1 Physical Layer Specification Ver6.10 Final] definitions. Card capacities of the non-secure area and secure area (if needed) support [Part 3 Security Specification Ver4.00 Final] Specifications.
The microSD card 6.10 comes with an 8-pin interface, designed to operate at a maximum frequency of 208MHz. It can alternate communication protocol between the SD mode and SPI mode. It performs data error detection and correction with very low power consumption. Its capacity could reach 256GB with exFAT SDXC.
acon’s microSD 6.10 card is one of the most popular removable storage cards today due to its high performance, good reliability and wide compatibility. Not to mention that it’s well adapted for hand-held applications in semi-industrial/medical markets already. Moreover, with customized firmware technique, acon’s microSD 6.10 can be configured with pSLC SD Mode an presents outstanding performance along with better P/E cycles.

Model No.
L/LX31
Interface
SD 6.1
Capacity
4GB - 64GB
Flash Type
3D pSLC
Endurance
30.000 P/E Cycles
Standard Temperature
-25°C +85°C
Extended Temperature
-40°C +85°C
Performance
SR: 95MB/s | SW: 85MB/s
DRAM
No

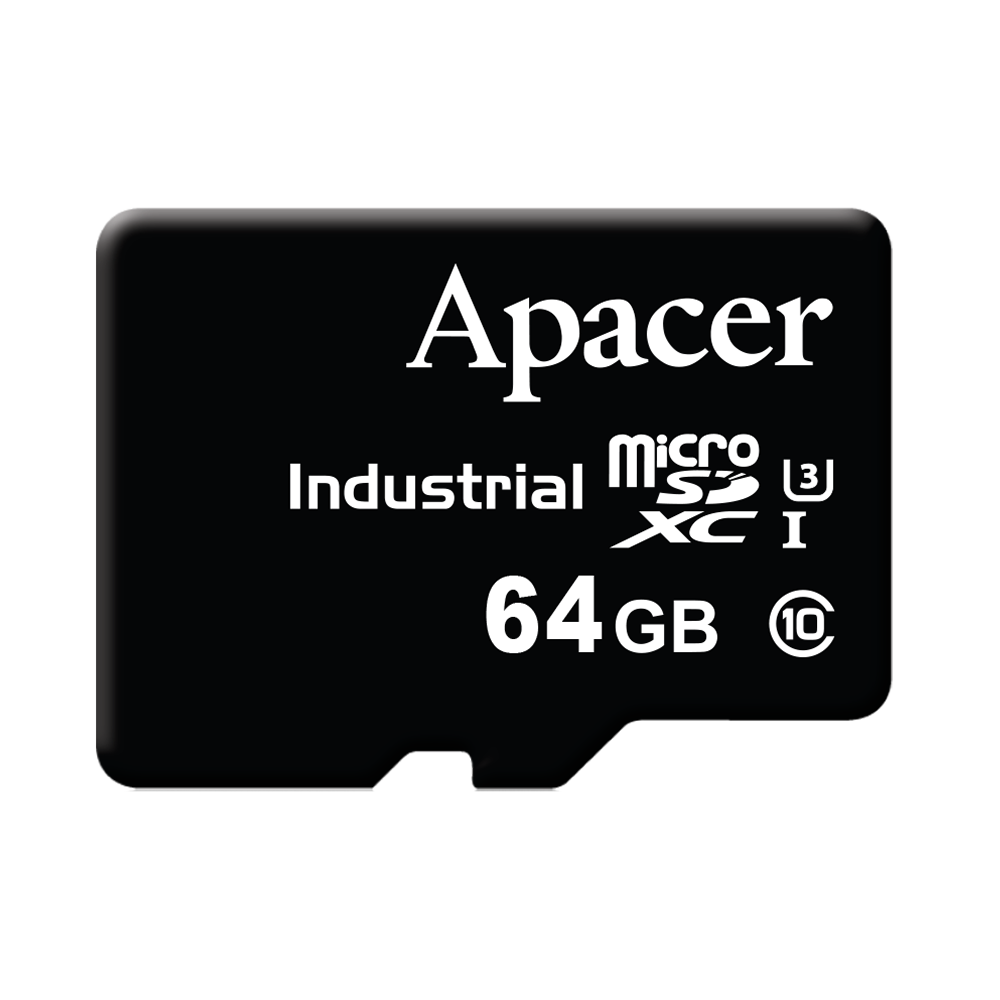

Apacer microSD Card CH110-MSD

Apacer microSD CH110-MSD is compatible with the microSD card version 5.0. The command list supports [Physical Layer Specification Ver6.10 Final] definitions. Card Capacity of Non-secure Area, Secure Area Supports [Part 3 Security Specification Ver5.0 Final] Specifications.

The microSD 5.0 card comes with 8-pin interface. It can alternate communication protocols between the SD mode and SPI mode. It performs data error detection and correction with very low power consumption. It supports capacity 32GB with exFAT SDXC.

Apacer microSD CH110-MSD Secure Digital 5.0 with high performance, good reliability and wide compatibility is nowadays one of the most popular cards with customized firmware techniques in semi-industrial/medical markets already.

Model No.
CH110-MSD
Interface
SD 5.0
Capacity
8GB - 64GB
Flash Type
3D pSLC
Endurance
30.000 P/E Cycles
Standard Temperature
-25°C +85°C
Extended Temperature
-40°C +85°C
Performance
SR: 95MB/s | SW: 80MB/s
DRAM
No
