Flash Profiler

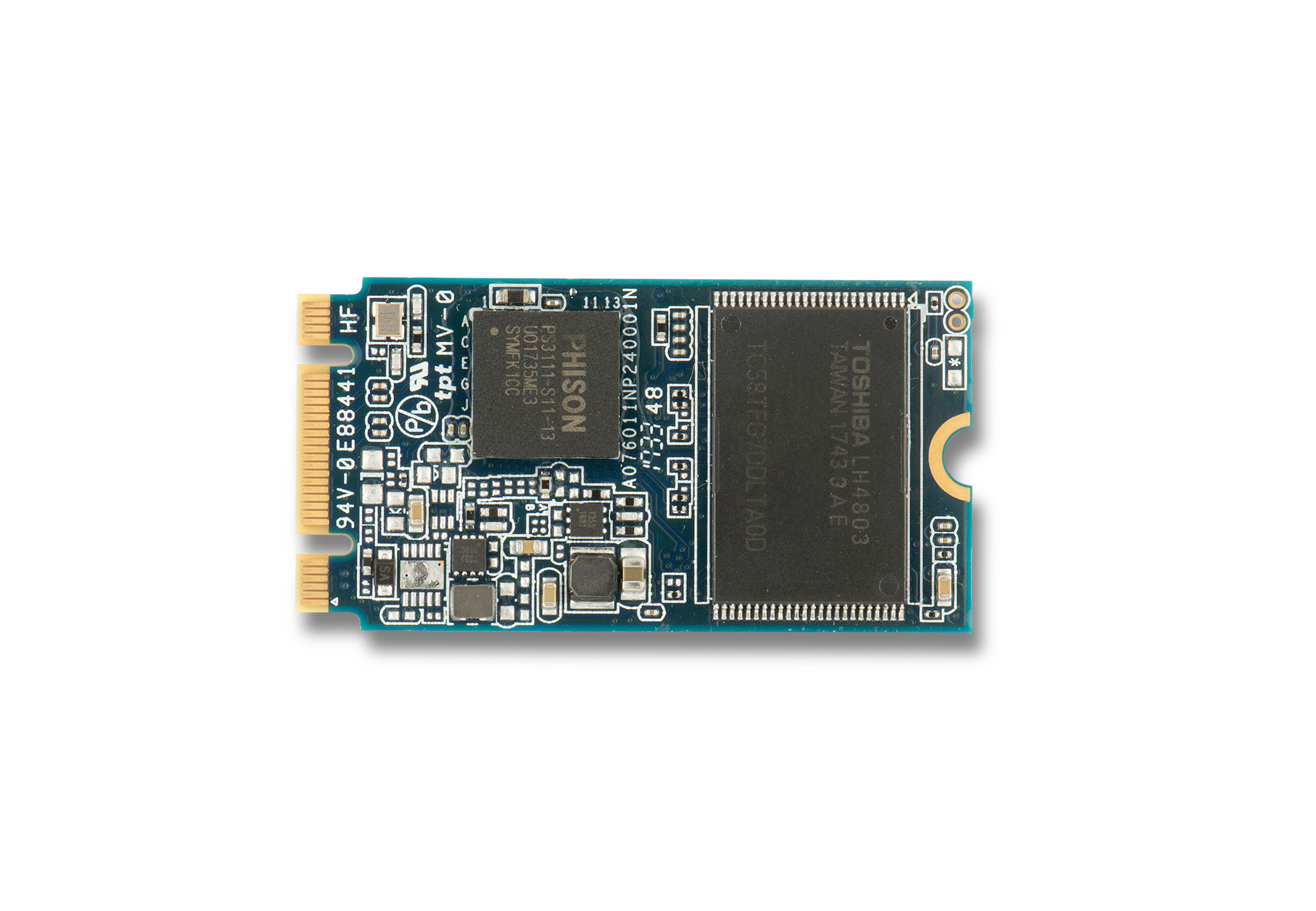

acon M.2 2242 SATA III SSD L/LX410

acon Industrial M.2 2242 SSD is a new SSD module designed for embedded systems applied for industrial platforms. acon industrial 2242 SSD offers a universal temperature range for operation, 0°C - 70°C and -40°C - 85°C and a capacity up to 256GB.

Model No.
L/LX410
Interface
SATA III 6.0 Gb/s
Capacity
2GB - 256GB
Flash Type
pSLC
Endurance
3.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-40°C bis +85°C
Performance
SR: 560MB/s | SW: 465MB/s
DRAM
No

Model Nr.
LX411 Seal M.2
Form Factor
M.2 2242 SATA III
Kapazität
2GB - 256GB
Flash Typ
pSLC
Endurance
3.000 P/E Cycles
Standard Temperatur
-
Erweiterte Temperatur
-40°C bis +85°C
Lesegeschwindigkeit
560MB/s
Schreibgeschwindigkeit
465MB/s
Coating
elektronisches Gießharz

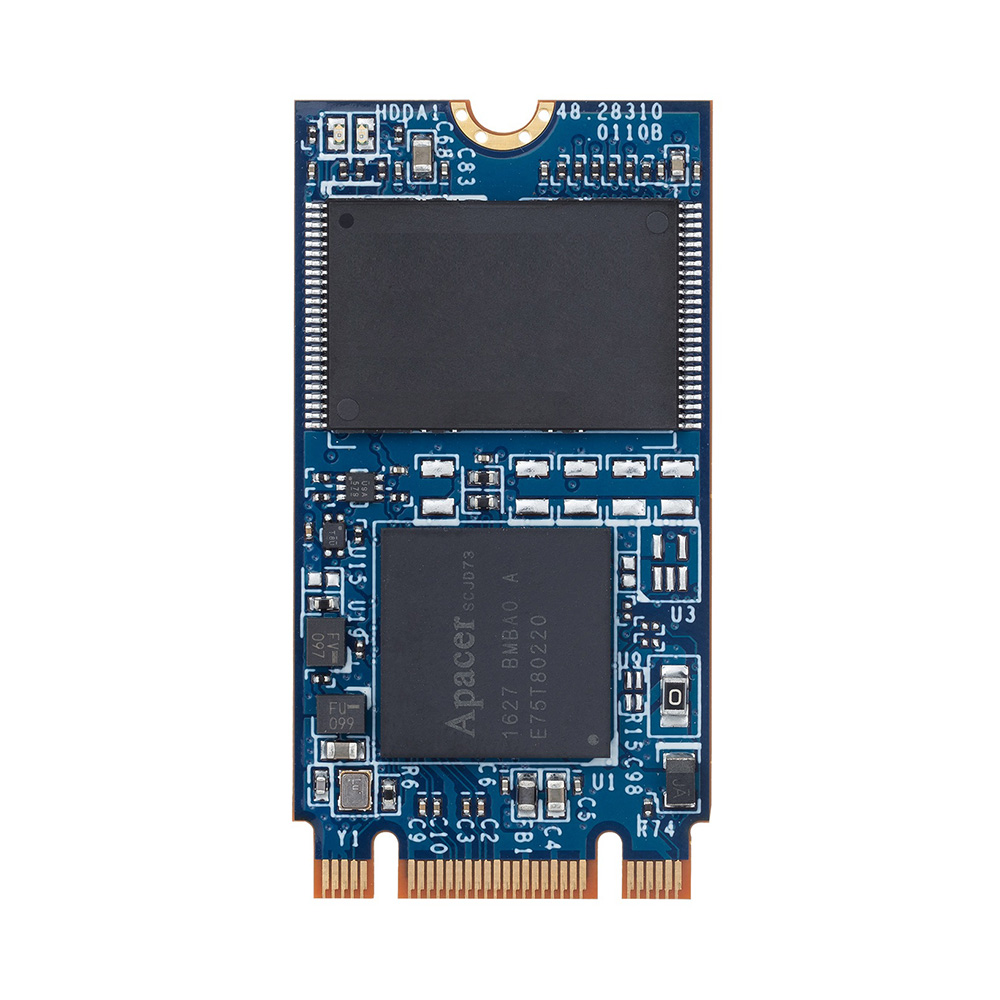

Apacer M.2 2242 SATA III SSD SU220-M242

Apacer’s SU220-M242 (M.2 2242) is the next generation modularized Solid State Drive (SSD) with the shape of all new M.2 form factor, with the aim to be the more suitable for mobile and compact computers with standard width at only 22.00 mm. SU220-M242 appears in M.2 2242 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems.
Regarding reliability, SU220-M242 is built with a powerful SATA controller that supports on-the-module ECC as well as efficient wear leveling scheme. With Apacer's SLC-lite technology, SU220-M242 performs with higher number of P/E cycles up to 20,000 times. Since it is operating under SATA 6.0 Gbps interface, SU220-M242 is provided with Apacer latest S.M.A.R.T. that are primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analyzing.

Model No.
SU220-M242
Interface
M.2 2242
Capacity
8GB~128GB
Flash Type
pSLC
Endurance
20.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-40°C bis +85°C
Performance
SR: 505 MB/s | SW: 465MB/s
DRAM
Yes

Cactus M.2 2242 SATA III SSD Series 245

The Cactus Technologies 245S Series OEM Grade M.2 (also known as NGFF – Next Generation Form Factor), 2242 (22mm x 42mm) form factor is available in capacities up to 128 GBytes and is a solid-state flash memory product that adheres to the SATA-IO group’s specifications. Based on Pseudo-SLC NAND, it is intended for OEM applications needing a cost effective part with high performance SATA III interface.
OEM Grade pSLC M.2 2242 have >6 times more endurance cycles than Commercial Grade products based on MLC NAND. Pseudo-SLC products should be used in applications which require better endurance, error rates and data retention than the Commercial Grade MLC M.2 SSD.
The 245S Series M.2 2242 comes with full BOM Control and is built with Stringent Quality Processes. Cactus Technologies incorporates World Class ECC, Wear Leveling and Defect Management into the 245S Series M.2, making it the most reliable pSLC based M.2 on the market. Custom Labeling, Custom ID and Preloaded Content are available based on customer requirements

Model No.
245S-SM6
Interface
SATA III 6.0 Gb/s
Capacity
4GB-128GB
Flash Type
pSLC
Endurance
20.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-40°C bis +85°C
Performance
SR: 540MB/s | SW: 450MB/s
DRAM
No
