Flash Profiler

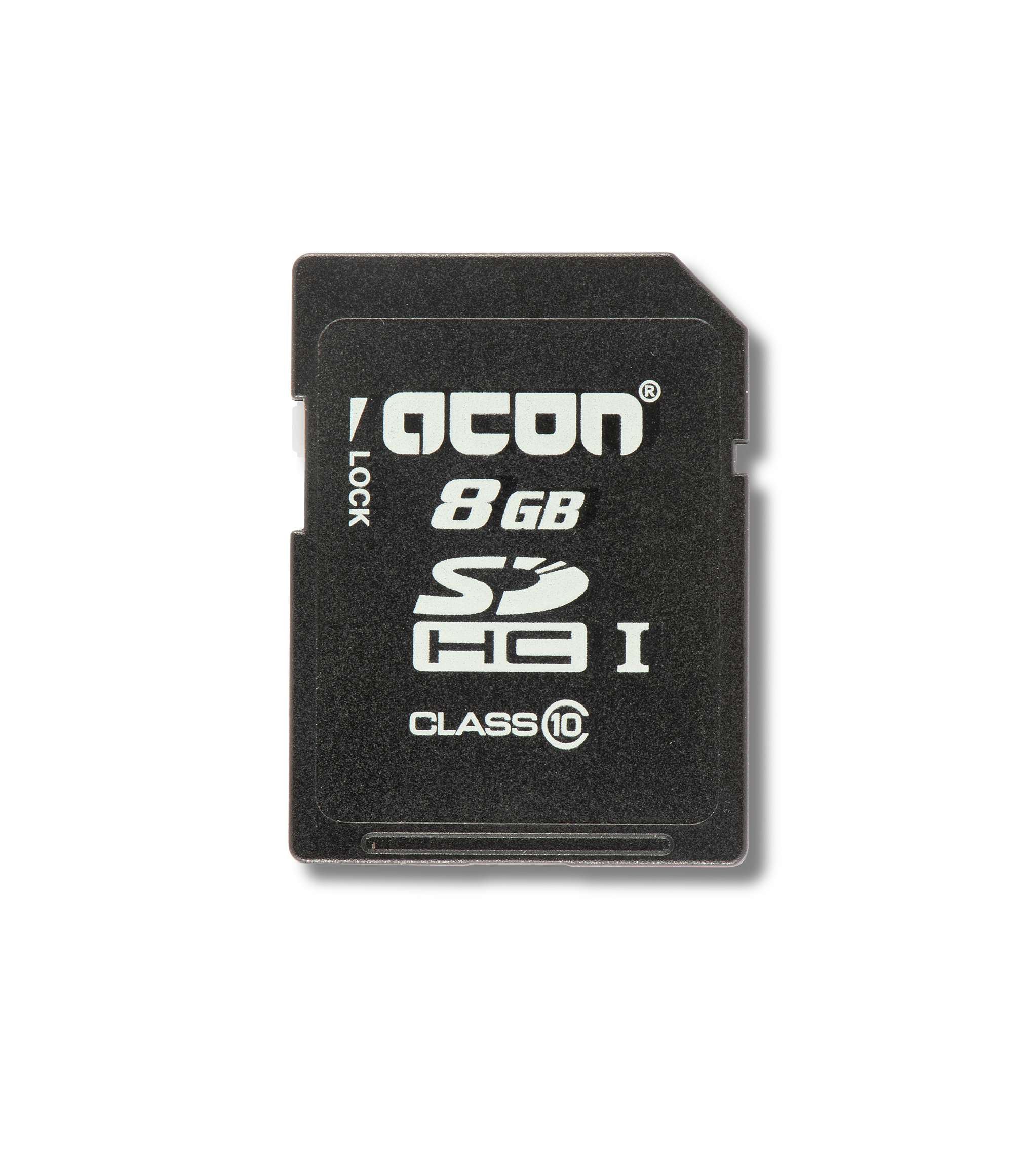

acon SD Card M/MX30

acon’s Industrial/Automotive SD 3.0 is fully compliant to the specification released by SD Card Association. The Command List supports [Part 1 Physical Layer Specification Ver3.01 Final] definitions. Card Capacity of Non-secure Area, Secure Area Supports [Part 3 Security Specification Ver3.00 Final] Specifications.
The SD 3.0 card comes with 9-pin interface, designed to operate at a maximum operating frequency of 100MHz. It can alternate communication protocol between the SD mode and SPI mode. It performs data error detection and correction with very low power consumption. Its capacity could reach 128GB with exFAT SDXC.
acon’s Industrial/Automotive SD 3.0 is one of the most popular cards today based on its high performance, good reliability and wide compatibility. Not to mention that it’s well adapted for hand-held applications in semi-industrial, medical and automotive markets already.

Model No.
M/MX30
Interface
SD 3.0
Capacity
4GB - 128GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C
Performance
SR: 95MB/s | SW: 90MB/s
DRAM
No

Apacer SD Card 3.0 Industrial H1-M

Apacer Industrial Secure Digital 3.0 card is ideal for its high performance, good reliability and wide compatibility, not to mention that it’s well adapted for hand-held applications in semi-industrial/medical markets already. The H1-M series providing wide range capacities from 4GB to 128GB fully compliant to SD3.0, and SD2.0 specifications are built with MLC NAND Flash and the latest firmware including read disturb , wear leveling & bad block management algorithms .Furthermore, this product also has an optional -45C to 85C extended temperature range version to withstand the extreme environmental condition.

Model No.
H1-M
Interface
SD 3.0
Capacity
4GB - 128GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C
Performance
SR: 43MB/s | SW: 30MB/s

Cactus SD Card Series 240

The Cactus Commercial Grade MLC SD cards have life cycles in the 18-24 month range. For longer life cycle OEM system requirements, Cactus can review the application with the OEM and possibly extend this life cycle range. These MLC SD Cards have Locked BOM (Bill-Of-Material) signifying there will be no changes to controller silicon, NAND silicon or firmware without notification.

Model No.
KS4GR-240
Interface
SD 3.0
Capacity
4GB - 128GB
Flash Type
MLC
Endurance
3.000 P/E Cycles
Standard Temperature
-25C bis +85C
Extended Temperature
-40C bis +85C

Performance
SR: 80MB/s | SW: 45

DRAM
No

Model Nr.
Industrial SD Card
Form Factor
SD 3.0
Kapazität
8GB~128GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
54 MB/s
Schreibgeschwindigkeit
18 MB/s

Model Nr.
SDSDAG2
Form Factor
microSD 2.0
Kapazität
8GB - 64GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit
20MB/s
Schreibgeschwindigkeit
20MB/s

Model Nr.
SDSDAF
Form Factor
microSD 3.0
Kapazität
8GB - 64GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
20MB/s
Schreibgeschwindigkeit
20Mb/s

Model Nr.
SDSDAF2
Form Factor
microSD 3.0
Kapazität
8GB - 64GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
20MB/s
Schreibgeschwindigkeit
20MB/s

Model Nr.
SDSDAA
Form Factor
SD 2.0
Kapazität
8GB - 32GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit
20MB/s
Schreibgeschwindigkeit
5MB/s

Model Nr.

SDSDAD
Form Factor

SD 3.0
Kapazität

16GB - 128GB
Flash Typ

MLC
Standard Temperatur


-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit


40MB/s
Schreibgeschwindigkeit

10MB/s

Model Nr.
SDSDAE
Form Factor
SD 3.0
Kapazität
8GB - 128GB
Flash Typ
MLC
Standard Temperatur
-25C bis +85C
Erweiterte Temperatur
-
Lesegeschwindigkeit
80MB/s
Schreibgeschwindigkeit
50MB/s
