Flash Profiler



EMP2 X4S1

Model No.
EMP2 X4S1
Form-Factor
mPCIe
Input I/F
PCI Express 2.0
Input connector
mPCIe
Output I/F
RS-485 x 4
Output connector
DB-9 x 4
Dimensions(W*L*H/mm)
30 x 50.9 x 12.55
Temperature
Wide temp: -40°〜85°C
Order info.
EMP2-X4S1-W1

EMP2 X4S2

Model No.
EMP2 X4S2
Form-Factor
mPCIe
Input I/F
PCI Express 2.0
Input connector
mPCIe
Output I/F
RS-422 x 2, RS-485 x 2
Output connector
DB-9 x 4
Dimensions(W*L*H/mm)
30 x 50.9 x 12.55
Temperature
Wide temp: -40°〜85°C
Order info.
EMP2-X4S2-W1

EMP2 X202

Model No.
EMP2 X202
Form-Factor
mPCIe
Input I/F
PCI Express 2.0
Input connector
mPCIe
Output I/F
RS-422/485 x 2
Output connector
DB-9 x 2
Dimensions(W*L*H/mm)
30 x 50.9 x 8.2
Temperature
Wide temp: -40°〜85°C
Order info.
EMP2-X202-W1

EMP2 X203

Model No.
EMP2 X203
Form-Factor
mPCIe
Input I/F
PCI Express 2.0
Input connector
mPCIe
Output I/F
RS-232 x 2
Output connector
DB-9 x 2
Dimensions(W*L*H/mm)
30 x 50.9 x 6.7
Temperature
Wide temp: -40°〜85°C
Order info.
EMP2-X203-W1

EMP2 X403

Model No.
EMP2 X403
Form-Factor
mPCIe
Input I/F
PCI Express 2.0
Input connector
mPCIe
Output I/F
RS-232 x 4
Output connector
DB-9 x 4
Dimensions(W*L*H/mm)
30 x 50.9 x 6.7
Temperature
Wide temp: -40°〜85°C
Order info.
EMP2-X403-W1

EMP2 X404

Model No.
EMP2 X404
Form-Factor
mPCIe
Input I/F
PCI Express 2.0
Input connector
mPCIe
Output I/F
RS-232/422/485 x 4
Output connector
DB-9 x 4
Dimensions(W*L*H/mm)
30 x 50.9 x 6.1
Temperature
Wide temp: -40°〜85°C
Order info.
EMP2-X404-W1

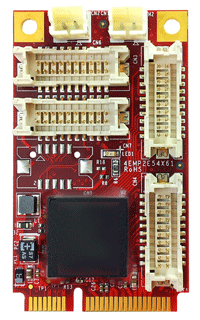

EMP2 X801

Model No.
EMP2 X801
Form-Factor
mPCIe
Input I/F
PCI Express 2.0
Input connector
mPCIe
Output I/F
RS-232/422/485 x 8
Output connector
DB-9 x 8
Dimensions(W*L*H/mm)
30 x 50.9 x 6.1
Temperature
Wide temp: -40°〜85°C
Order info.
EMP2-X801-W1

EMPL G2P1

Model No.
EMPL G2P1
Form-Factor
mPCIe
Input I/F
PCI Express 2.1
Input connector
mPCIe
Output I/F
PoE x 2
Output connector
RJ45 x 2
Dimensions(W*L*H/mm)
30 x 50.9 x 7.6
Temperature
"STD temp: 0°〜70°C
Wide temp: -40°〜85°C "
Order info.
"EMPL-G2P1-C1 (Terminal mounting, 4pin header)
EMPL-G2P1-W1 (Terminal mounting, 4pin header)
EMPL-G2P1-C2 (Bracket, 4pin header)
EMPL-G2P1-W2(Bracket, 4pin header) EMPL-G2P1-C3 (Terminal mounting, DC Jack )
EMPL-G2P1-W3 (Terminal mounting, DC Jack)
EMPL-G2P1-C4 (Bracket, DC Jack)
EMPL-G2P1-W4(Bracket, DC Jack)"

EMPL G201

Model No.
EMPL G201
Form-Factor
(Kein Text eingegeben)
Input I/F
(Kein Text eingegeben)
Input connector
(Kein Text eingegeben)
Output I/F
(Kein Text eingegeben)
Output connector
(Kein Text eingegeben)
Dimensions(W*L*H/mm)
(Kein Text eingegeben)
Temperature
(Kein Text eingegeben)
Order info.
(Kein Text eingegeben)

EMU2 X1S1

Model No.
EMU2 X1S1
Form-Factor
mPCIe
Input I/F
USB 2.0
Input connector
mPCIe or 5Pin Header
Output I/F
RS-232 x 1
Output connector
DB-9 x 1
Dimensions(W*L*H/mm)
30 x 50.9 x 6.1
Temperature
Wide temp: -40°〜85°C
Order info.
EMU2-X1S1-W1

EMU2 X2S1

Model No.
EMU2 X2S1
Form-Factor
mPCIe
Input I/F
USB 2.0
Input connector
mPCIe or 5Pin Header
Output I/F
RS-232 x 2
Output connector
DB-9 x 2
Dimensions(W*L*H/mm)
30 x 50.9 x 6.1
Temperature
Wide temp: -40°〜85°C
Order info.
EMU2-X2S1-W1

EMUC B201

Model No.
EMUC B201
Form-Factor
mPCIe
Input I/F
USB 2.0
Input connector
mPCIe or 5Pin Header
Output I/F
CANbus 2.0B x 2
Output connector
DB-9 x 2
Dimensions(W*L*H/mm)
30 x 50.9 x 6.1
Temperature
Wide temp: -40°〜85°C
Order info.
EMUC-B201-W1

EMUI 0D01

Model No.
EMUI 0D01
Form-Factor
mPCIe
Input I/F
USB 2.0
Input connector
mPCIe or 5Pin Header
Output I/F
32bit Digital I/O
Output connector
40pin 1.25mm (40DP-1.25 ) with DB37 male cable
Dimensions(W*L*H/mm)
30 x 50.9 x 8.2
Temperature
Wide temp: -40°〜85°C
Order info.
EMUI-0D01-W1

EMP2 X402

Model No.
EMP2 X402
Form-Factor
mPCIe
Input I/F
PCI Express 2.0
Input connector
mPCIe
Output I/F
RS-422/485 x 4
Output connector
DB-9 x 4
Dimensions(W*L*H/mm)
30 x 50.9 x 8.2
Temperature
Wide temp: -40°〜85°C
Order info.
EMP2-X402-W1

EMPL G101

Model No.
EMPL G101
Form-Factor
mPCIe
Input I/F
PCI Express 2.1
Input connector
mPCIe
Output I/F
GbE LAN x 1
Output connector
RJ45 x 1
Dimensions(W*L*H/mm)
30 x 50.9 x 6.1
Temperature
STD temp: 0°〜70°C
Wide temp: -40°〜85°C
Order info.
EMPL-G101-C1
EMPL-G101-W1
EMPL-G101-C2 (with bracket)
EMPL-G101-W2 (with bracket)
