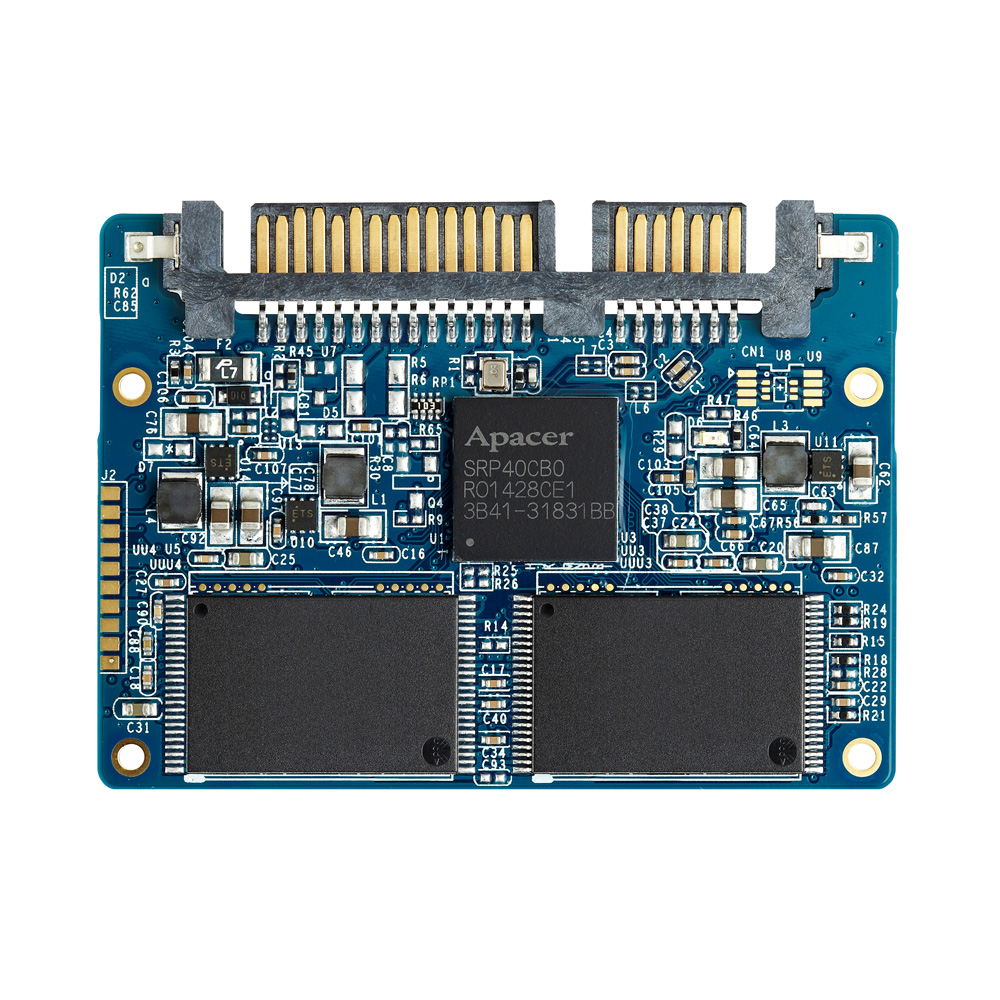

Apacer Slim SATA SATA III SSD SS210-297

Apacer’s SS210-297 is a well-balanced solid-state disk (SSD) drive with compact form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

For data efficiency, the internal controlling unit of the SSD is engineered with DRAM for enhanced random performance. In regard of reliability, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and power failure management.

Model Nr.
SS210-297
Interface
SATA III 6.0 Gb/s
Capacity
2GB - 128GB
Flash Type
SLC
Endurance
60.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-40°C bis +85°C
Performance
SR: 525MB/s | SW: 435MB/s
DRAM
Yes

Cactus Slim SATA SATA III SSD Series 900

Cactus Industrial Grade SLC (MO-297) Slim SATA are designed to meet the most challenging embedded flash storage requirements. They are available with an optional -45C to 90C extended temperature range version and can be customized to meet specific design needs.

Model No.
KD64GF-900SM3
Form Factor
SATA II 3.0 Gb/s
Capacity
4GB - 64GB
Flash Type
SLC
MTBF (Std.)
>2 Mio
Standard Temperature
0°C bis +70°C
Extended Temperature
-45°C bis +90°C
Performance
SR: 110MB/s | SW: 90MB/s
DRAM
No

With its smaller dimension, SATA Slim 3SE is an alternative solution of 2.5” SSD for those embedded system that may have mechanical and space concerns.

Model Nr.
SATA Slim 3SE
Form Factor
MO-297 SATA III 6.0 Gb/s
Kapazität
4GB~128GB
Flash Typ
SLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
470 MB/s
Schreibgeschwindigkeit
370 MB/s

Model Nr.
SATA Slim 3SE3
Interface
MO-297 SATA III 6.0 Gb/s
Kapazität
8GB~128GB
Flash Typ
SLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
370 MB/s
Schreibgeschwindigkeit
220 MB/s

StorFly® Slim SATA (MO-297) SSDs are ideal for networking, embedded, industrial and Advanced TCA applications that implement a standard SATA 3Gbps socket but require a form factor with a volume that is roughly 15% that of a 2.5-inch SSD.

Model Nr.
PE
Form Factor
MO-297 Slim SATA III
Kapazität
8GB-256GB
Flash Typ
SLC
MTBF (Std.)
>2 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
400MB/s
