Flash Profiler

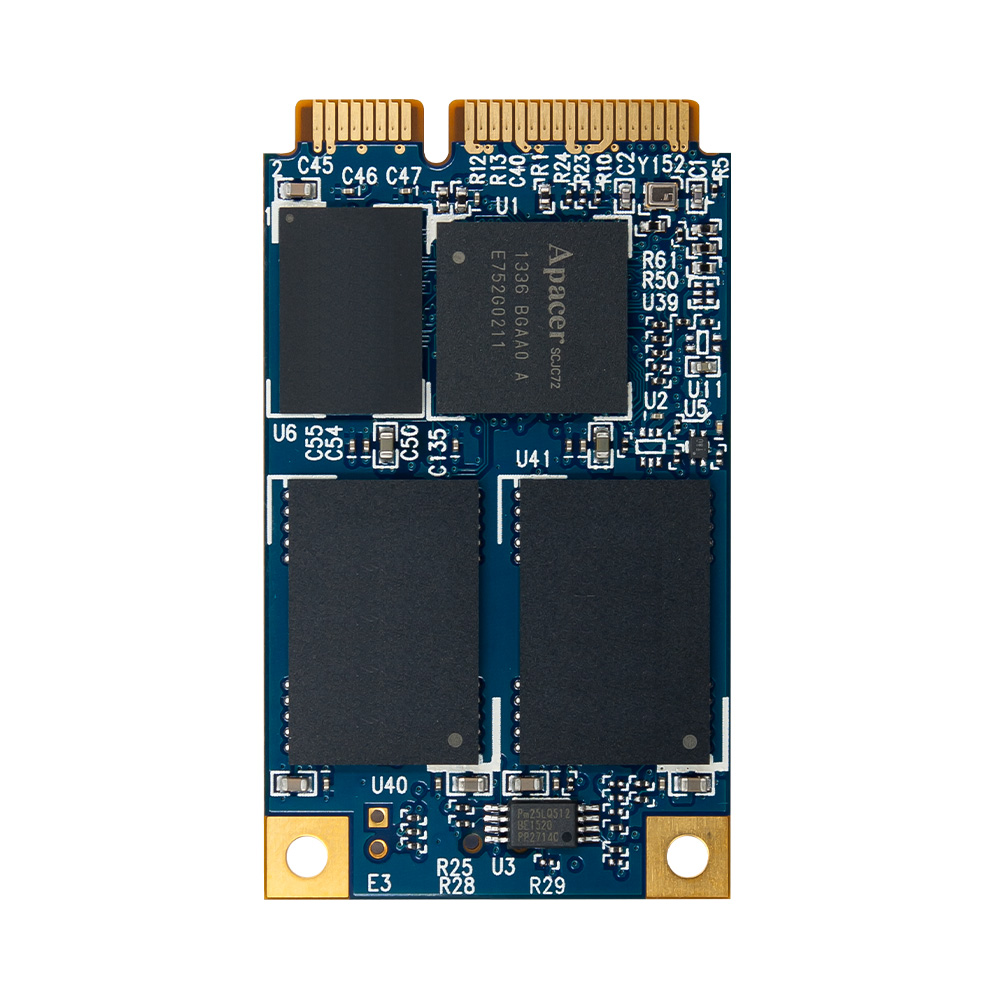

Apacer mSATA SATA III SSD SS210-300

Apacer SS210-300 is a well-balanced solid-state disk (SSD) drive with compact form factor (JEDEC MO-300) and great performance. Designed in SATA 6.0 Gbps interface, the mSATA SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading embedded or server operations with space constraints for host computing systems.
For data efficiency, the internal controlling unit of the mSATA SSD is engineered with DRAM for enhanced random performance. In regard of reliability, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and power failure management.

Model No.
SS210-300
Interface
SATA III 6.0 Gb/s
Capacity
2GB - 128GB
Flash Type
SLC
Endurance
60.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-40°C bis +85°C
Performace
SR: 525MB/s | SW: 445MB/s
DRAM
Yes

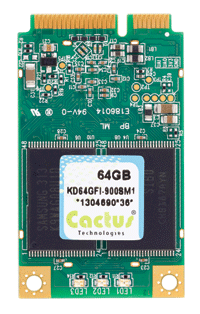

Cactus mSATA SATA III SSD Series 900

Our mSATA SLC SSD have been used in numerous industrial applications. They use the SATA interface which is much faster than older Parallel ATA products such as CF and PC Cards. SLC mSATA come with the reliability of SLC NAND which enables our high endurance of >2 Million write cycles per logical block.

Model No.
KD64GF-900SM1
Interface
SATA II 3.0 Gb/s
Capacity
4GB - 64GB
Flash Type
SLC
Endurance
60.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-45°C bis +90°C
Performance
SR: 440MB/s | SW: 430MB/s
DRAM
No

Model Nr.
mSATA 3SE
Form Factor
MO-300A SATA III 6.0 Gb/s
Kapazität
1GB~64GB
Flash Typ
SLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
460 MB/s
Schreibgeschwindigkeit
230 MB/s

Model Nr.
mSATA 3SE3
Form Factor
MO-300A SATA III 6.0 Gb/s
Kapazität
4GB~128GB
Flash Typ
SLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
385 MB/s
Schreibgeschwindigkeit
225 MB/s

StorFly® mSATA (MO-300) SSDs are optimal storage solutions for medical, networking and embedded applications that require high performance in a small form factor.
StorFly mSATA offers a superior solution for system designs that implement SATA connectivity over a widely-used socket that has the added benefit of industry-standard clamping mechanism, making them ideal for wearable or vehicle computers and other high shock and vibration applications.
in many military and ruggedized portable computers and data recorders.

Model Nr.
PE
Form Factor
mSATA SATA III
Kapazität
8GB-256GB
Flash Typ
SLC
MTBF (Std.)
>2 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
400MB/s

StorFly® mSATA (MO-300) SSDs are optimal storage solutions for medical, networking and embedded applications that require high performance in a small form factor.
StorFly mSATA offers a superior solution for system designs that implement SATA connectivity over a widely-used socket that has the added benefit of industry-standard clamping mechanism, making them ideal for wearable or vehicle computers and other high shock and vibration applications.
in many military and ruggedized portable computers and data recorders.

Model Nr.
PE
Form Factor
mSATA SATA III
Kapazität
8GB-256GB
Flash Typ
SLC
MTBF (Std.)
>2 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
400MB/s
