Flash Profiler




Acon AO110 Industrial Slim SATA III SSD

acon Industrial Slim SATA delivers all the advantages of flash disk technology with the Serial ATA Interface and is fully compliant with the standard Slim SATA form factor, known as JEDEC MO-297 standard. The power consumption of the Slim SATA SSD is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model Nr.
AO110 Industrial Slim SATA
Form Factor
MO-297 SATA III
Kapazität
16GB - 512GB
Flash Typ
MLC
MTBF (Std.)
>2 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
550MB/s
Schreibgeschwindigkeit
490MB/s

Acon AO110 Seal Slim SATA III SSD

acon Seal Slim SATA products will be fully coated with a special sealing compound, which hermetically seals the sensitive electronic components within and protects your data reliably against liquids, dust, dirt, shock and vibration. acon Seal Slim SATA delivers all the advantages of flash disk technology with the Serial ATA Interface and is fully compliant with the standard Slim SATA form factor, known as JEDEC MO-297 standard.

Model Nr.
AO110 Seal Slim SATA
Form Factor
MO-297 SATA III
Kapazität
16GB - 512GB
Flash Typ
MLC
MTBF (Std.)
>2 Mio
Standard Temperatur
-
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
550MB/s
Schreibgeschwindigkeit
490MB/s
Coating
elektronisches Gießharz

Apacer Slim SATA Module SFD18S6-M

Apacer’s SFD18S6-M is a well-balanced solid-state disk (SSD) drive with compact form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

Model Nr.
SFD18S6-M
Form Factor
MO-297 SATA III
Kapazität
32GB - 512GB
Flash Typ
MLC
MTBF (Std.)
>1 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
510MB/s
Schreibgeschwindigkeit
320MB/s

Apacer Slim SATA Module SFD18SH-M

Apacer SFD18SH-M half-slim MO-297 SSD (Solid State Drive) delivers multiple technological advantages of flash memory storage. With SATA 6.0 Gbps interface, SFD18SH-M offers exceptional data transfer performance.

Model Nr.
SFD18SH-M
Form Factor
MO-297 SATA III
Kapazität
8GB - 256GB
Flash Typ
MLC
MTBF (Std.)
>1 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
430MB/s
Schreibgeschwindigkeit
160MB/s

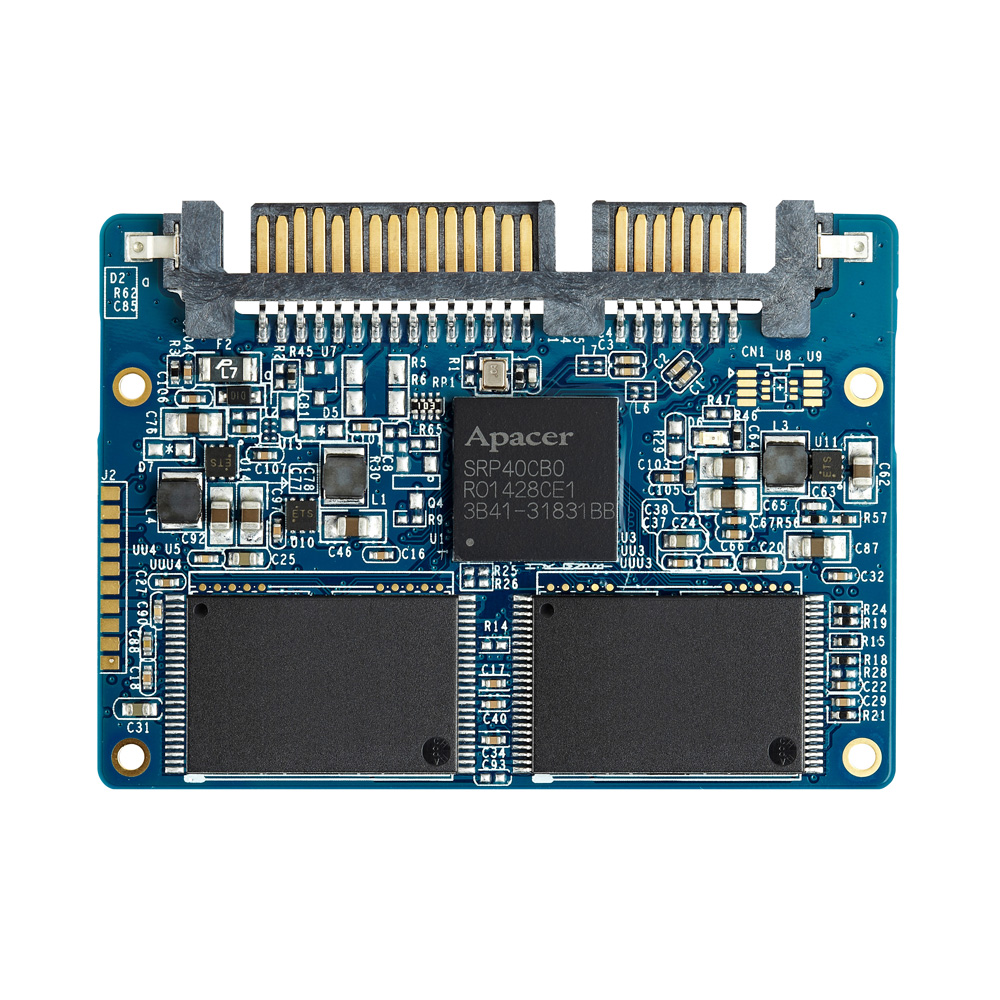

Apacer Slim SATA Module SM220-297

Featuring CorePower technology, Apacer’s SM220-297 is a well-balanced solid-state disk (SSD) drive with compact form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

Model Nr.
SM22P-297
Form Factor
MO-297 SATA III
Kapazität
32GB - 128GB
Flash Typ
MLC
MTBF (Std.)
>1 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
510MB/s
Schreibgeschwindigkeit
85MB/s

Innodisk Slim SATA SSD 3ME3

nnodisk SATA Slim 3ME3 is SATA III 6Gb/s Flash based disk, which designed with standard SATA interface (7+15 SATA connector), and compliant with JEDEC MO-297 standard.

Model Nr.
SATA Slim 3ME3
Form Factor
MO-297 SATA III 6.0 Gb/s
Kapazität
8GB~256GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
420 MB/s
Schreibgeschwindigkeit
140 MB/s

Innodisk Slim SATA SSD 3ME4

Innodisk SATA Slim 3ME4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. L² architecture multiplied by LDPC (Low Density Parity Check) is Innodisk’s exclusive L³ architecture.

Model Nr.
SATA Slim 3ME4
Form Factor
MO-297 SATA III 6.0 Gb/s
Kapazität
8GB~256GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520 MB/s
Schreibgeschwindigkeit
460 MB/s

Innodisk Slim SATA SSD 3MG2-P AES

Innodisk SATA Slim 3MG2-P is designed with AES engine, which is built-in the controller. When controller receives the data package from host, AES engine encrypts the data package and saves the encrypted data into NAND flash.

Model Nr.
SATA Slim 3MG2-P AES
Form Factor
MO-297 SATA III 6.0 Gb/s
Kapazität
32GB~512GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
530 MB/s
Schreibgeschwindigkeit
370 MB/s

Innodisk Slim SATA SSD 3MG2-P

With its smaller dimension, SATA Slim 3MG2-P is an alternative solution of 2.5” SSD for those embedded system that may have mechanical and space concerns.

Model Nr.
SATA Slim 3MG2-P
Form Factor
MO-297 SATA III 6.0 Gb/s
Kapazität
8GB~512GB
Flash Typ
MLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520 MB/s
Schreibgeschwindigkeit
460 MB/s

Virtium Storfly Slim SATA SSD MLC

StorFly® Slim SATA (MO-297) SSDs are ideal for networking, embedded, industrial and Advanced TCA applications that implement a standard SATA 3Gbps socket but require a form factor with a volume that is roughly 15% that of a 2.5-inch SSD.

Model Nr.
CE
Form Factor
MO-297 Slim SATA III
Kapazität
30GB-960GB
Flash Typ
MLC
MTBF (Std.)
100 TSD
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
300MB/s
