Flash Profiler

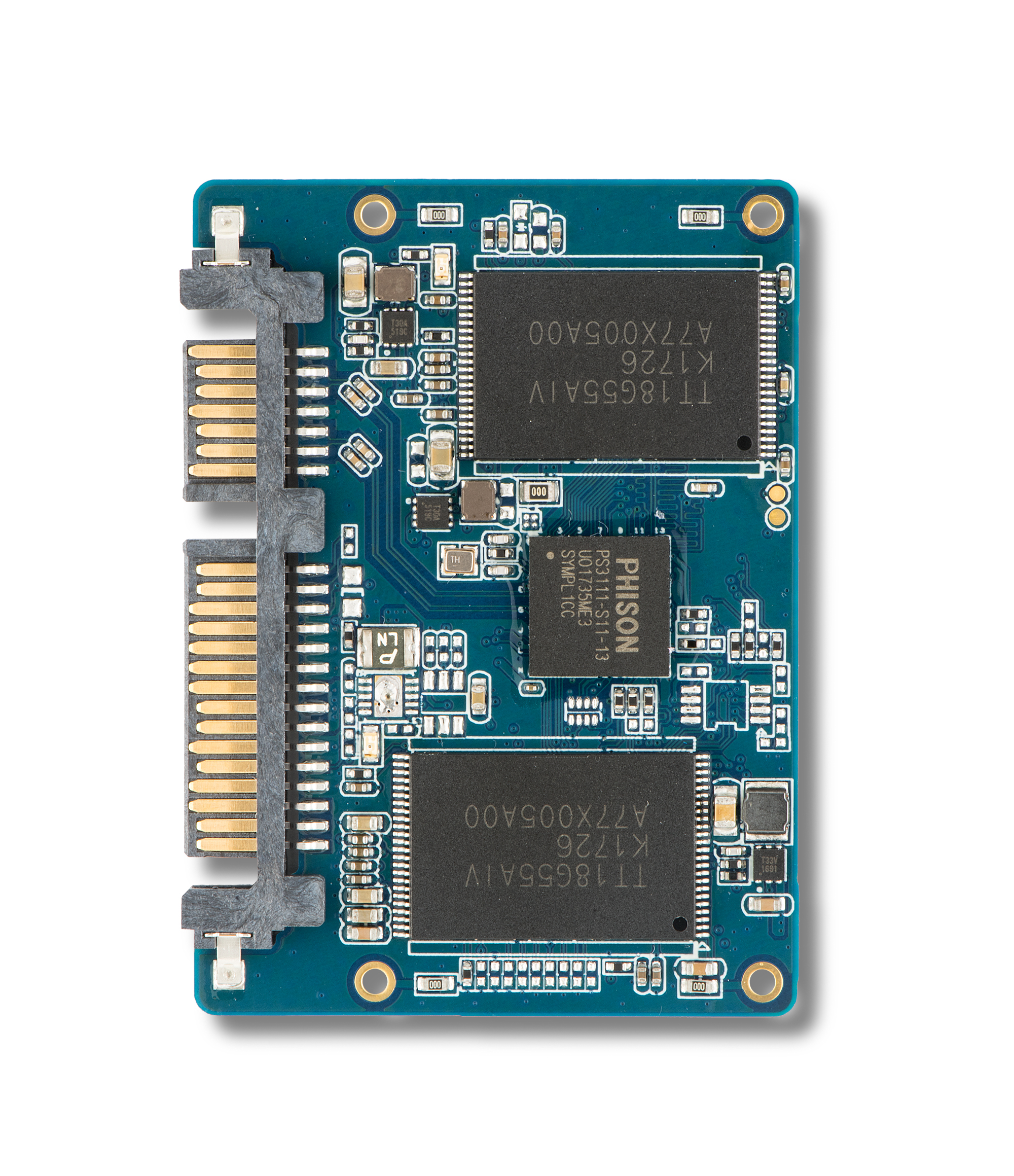

acon Slim SATA III SSD L/LX410

acon Industrial Slim SATA delivers all the advantages of flash disk technology with the Serial ATA Interface and is fully compliant with the standard Slim SATA form factor, known as JEDEC MO-297 standard. The power consumption of the Slim SATA SSD is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model Nr.
L/LX410
Interface
SATA III 6.0 Gb/s
Capacity
8GB - 128GB
Flash Type
pSLC
Endurance
20.000 P/E Cycles
Standard Temperature
0°C bis +70°C
Extended Temperature
-40°C bis +85°C
Performance
SR: 550MB/s | SW: 490MB/s
DRAM
No

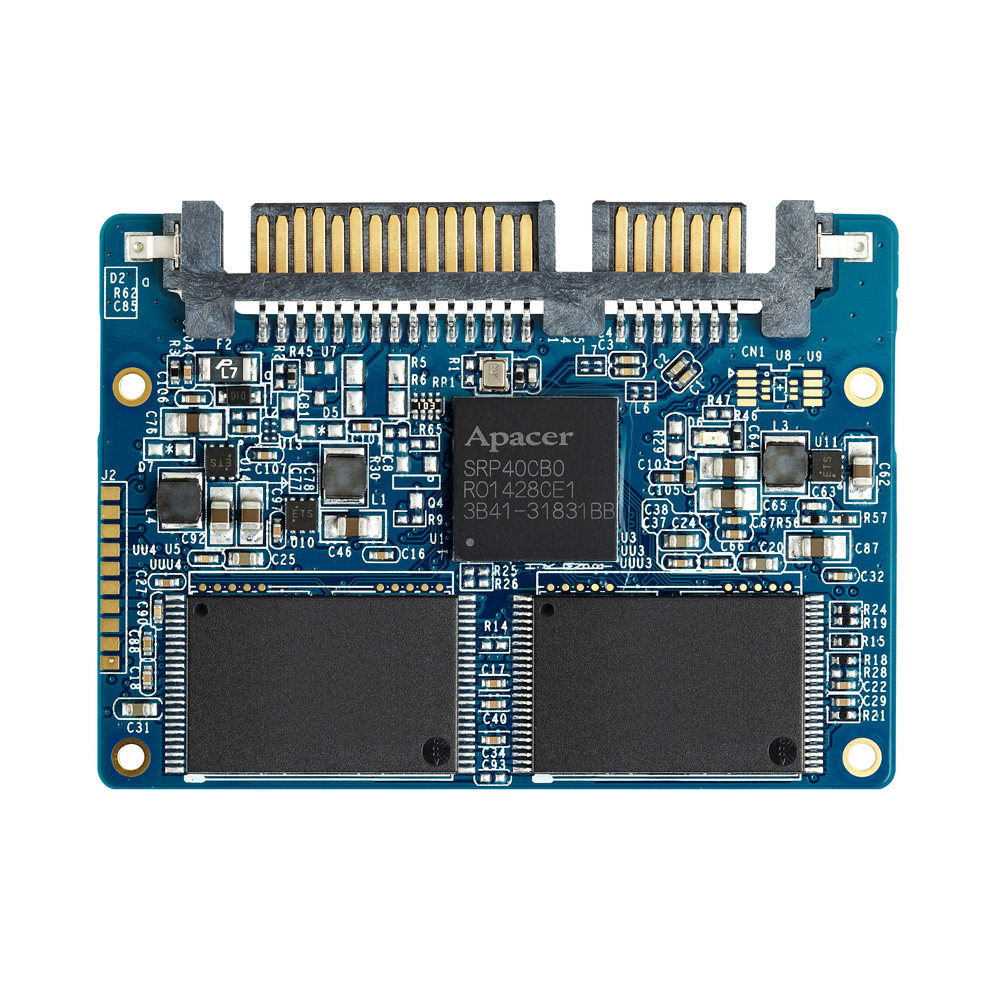

Apacer Slim SATA III SSD SU210-297

Apacer’s SU210-297 is a well-balanced solid-state disk (SSD) drive with compact form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.

For data efficiency, the internal controlling unit of the SSD is engineered with DRAM for enhanced random performance. In regard of reliability, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and power failure management.

Model No.
SU210-97
Interface
SATA III 6.0 Gb/s
Capacity
16GB - 256GB
Flash Type
pSLC

Endurance
20.000 P/E Cycles
Standard Temperature
0°C +70°C
Extended Temperature
-40°C bis +85°C
Performance
SR: 555MB/s | SW: 460MB/s
DRAM
Yes


Model Nr.
SATA Slim 3IE3
Form Factor
MO-297 SATA III 6.0 Gb/s
Kapazität
8GB~128GB
Flash Typ
iSLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
440 MB/s
Schreibgeschwindigkeit
220 MB/s

StorFly® Slim SATA (MO-297) SSDs are ideal for networking, embedded, industrial and Advanced TCA applications that implement a standard SATA 3Gbps socket but require a form factor with a volume that is roughly 15% that of a 2.5-inch SSD.

Model Nr.
XE
Form Factor
MO-297 Slim SATA III
Kapazität
16GB-480GB
Flash Typ
iMLC
MTBF (Std.)
200 TSD
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
300MB/s
