Flash Profiler

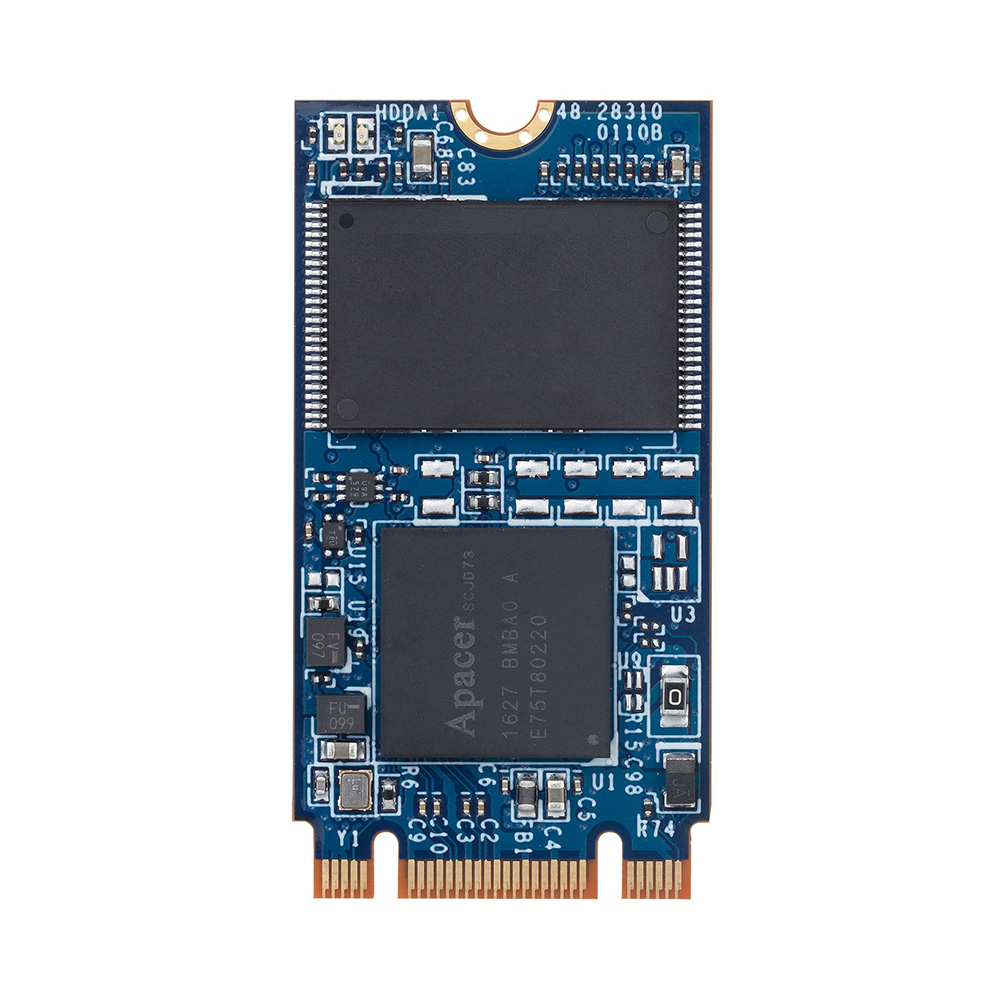

Apacer M.2 2242 SATA III SS220-M242

Apacer’s SS220-M242 (M.2 2242) is the next generation modularized Solid State Drive (SSD) with the shape of all new M.2 form factor, with the aim to be the more suitable for mobile and compact computers with standard width at only 22.00 mm. SS220-M242 appears in M.2 2242 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems.
The M.2 SSD is designed with SATA-based connector pinouts, providing full compliance with the latest SATA Revision 3.1 interface specifications. Aside from SATA compliance, SS220-M242 delivers exceptional performance and power efficiency. On the other hand, the extreme thin and light form factor makes SS220-M242 the ideal choice for mobile computing systems, which appears to be the trend in near future.
Regarding reliability, SS220-M242 is built with a powerful SATA controller that supports on-the-module ECC as well as efficient wear leveling scheme. Since it is operating under SATA 6.0 Gbps interface, SS220-M242 is provided with Apacer latest S.M.A.R.T. that are primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analyzing.

Model Nr.
SS220-M242
Form Factor
M.2 2242
Kapazität
1GB - 64GB
Flash Typ
SLC
Endurance
60.000 P/E Cycles
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
455MB/s

Innodisk M.2 (S42) 3SE is designed as the standard M.2 form factor with SATA interface, and supports SATA III standard (6.0Gb/s) with excellent performance.

Model Nr.
M.2 2242 3SE
Form Factor
M.2 SATA III 6.0 Gb/s
Kapazität
4GB~32GB
Flash Typ
SLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
290 MB/s
Schreibgeschwindigkeit
130 MB/s

Regarding of mechanical interference, Innodisk M.2 (S42) 3SE3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.

Model Nr.
M.2 2242 3SE3
Form Factor
M.2 SATA III 6.0 Gb/s
Kapazität
4GB~32GB
Flash Typ
SLC
MTBF (Std.)
>3 million hours
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
210 MB/s
Schreibgeschwindigkeit
110 MB/s

StorFly® M.2 SATA delivers an optimal solid-state storage solution for embedded and industrial systems that require high performance in a small form factor.
M.2 requires less power and generates less heat, which improves the devices’ reliability in systems where space is limited and airflow minimal, if not absent entirely. This provides system designers with the capability to scale their capacity by allowing integration of multiple SSDs all within a limited power budget or system footprint.

Model Nr.
PE
Form Factor
M.2 2242 SATA III
Kapazität
8GB-256GB
Flash Typ
SLC
MTBF (Std.)
>2 Mio
Standard Temperatur
0C bis +70C
Erweiterte Temperatur
-40C bis +85C
Lesegeschwindigkeit
520MB/s
Schreibgeschwindigkeit
400MB/s
