M.2 2242

acon M.2 2242 SATA III SSD T/TX410

acon’s M.2 2242 delivers all the advantages of flash disk technology with the Serial ATA I/II/III interface and is fully compliant with the standard Next Generation Form Factor (NGFF) called M.2 Card.
Format, which is generated by Intel. The M.2 2242 is designed to operate at a maximum operating frequency of 200MHz with 30MHz external crystal. Its capacity could provide a wide range up to 512GB.
The power consumption of the M.2 2242 is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Model No.	T/TX410
Interface	SATA III 6.0 Gb/s
Capacity	240GB - 2TB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 490MB/s
DRAM	No

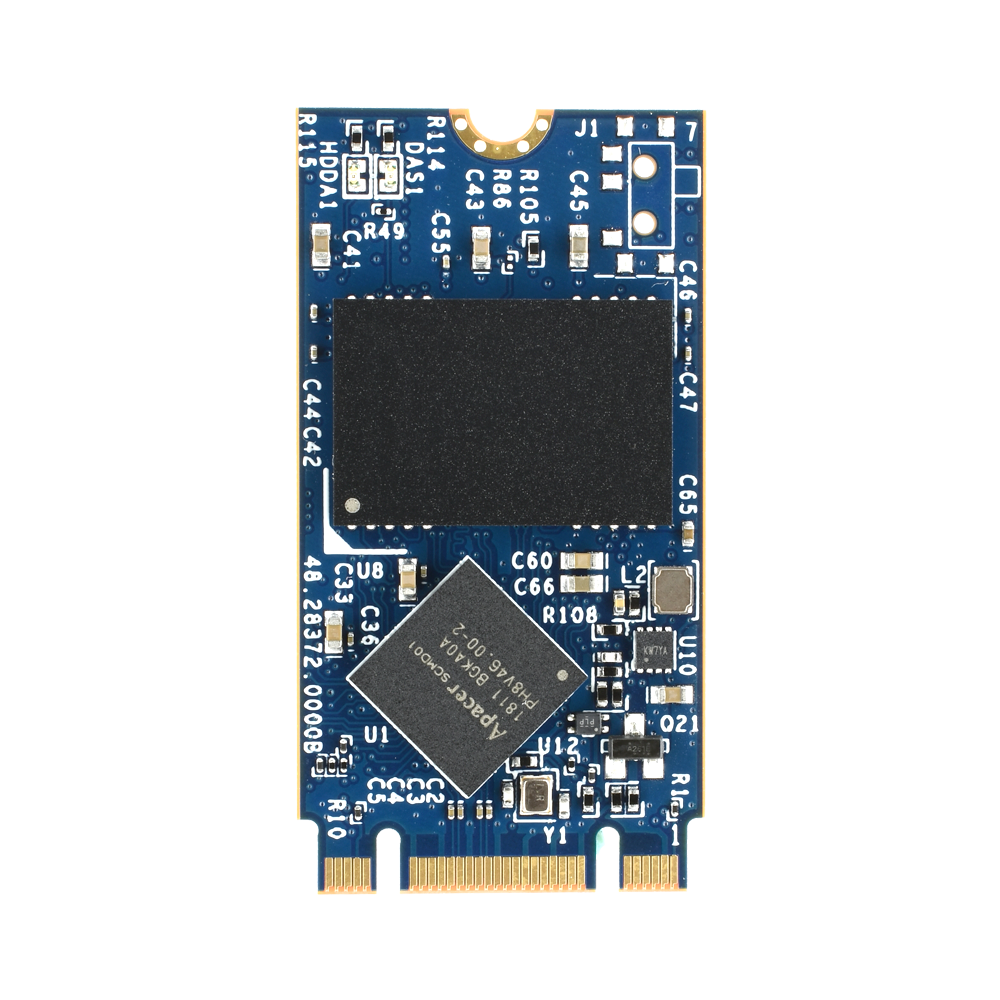

Apacer M.2 2242 SATA III SSD SV250-M242

Apacer’s SV250-M242 is a well-balanced solid-state disk (SSD) drive with standard form factor and great performance. Designed in SATA 6.0 Gbps interface, the SSD is able to deliver exceptional read/write speed, making it the ideal companion for heavy-loading industrial or server operations.
SV250-M242 utilizes 3D NAND for higher capacity up to 480GB and provides more power efficiency than 2D NAND. Regarding reliability, SV250-M242 is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability while reading raw data inside a flash chip. In addition, the drive comes with various implementations including powerful hardware ECC engine, power saving modes, wear leveling, flash block management, S.M.A.R.T., TRIM, and DataDefender™.

Model No.	SV250-M242
Interface	SATA III 6.0 Gb/s
Capacity	30GB - 480GB
Flash Type	3D TLC
Endurance	3.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 560MB/s \| SW: 515MB/s
DRAM	No
