CFAST

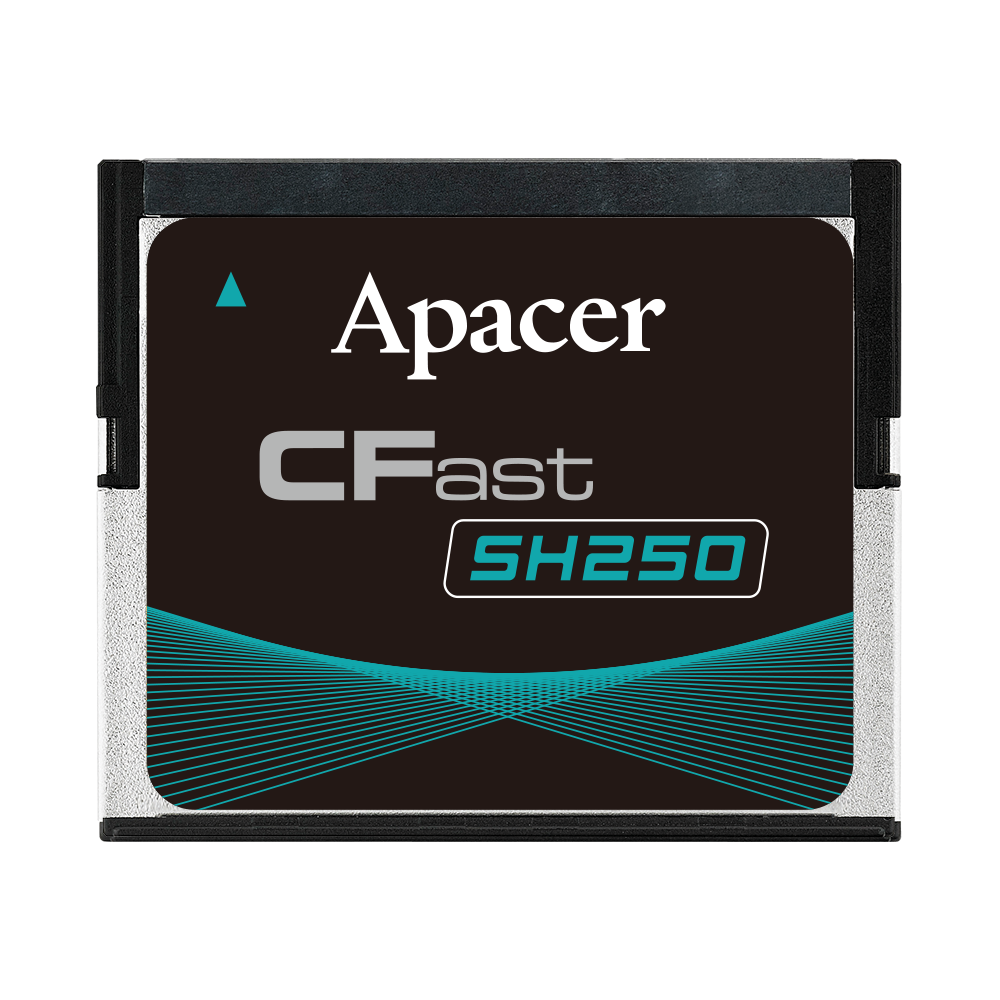

Apacer CFAST Card SATA III SH250

Apacer SH250-CFast 2.0 is the latest enhancement of conventional CFast form factor that delivers various technological advantages. It utilizes 3D NAND for higher capacity up to 160GB and provides more power efficiency than 2D NAND. This new flash memory card comes with SATA 6.0 Gbps interface for higher performance and consists of SATA-based 7-pin signal segment and 17-pin for power and control purposes. Designed without DRAM on the internal controlling unit, SH250-CFast ensures data integrity by preventing data loss during a sudden power outage.

For data efficiency, SH250-CFast 2.0 delivers data transfer rates up to 560MB/s in sequential access and 66,000 IOPS in 4KB random access. In addition, Apacer CFast cards come with S.M.A.R.T. for lifetime monitoring. With Apacer’s SLC-liteX technology, SH250-CFast 2.0 performs with higher number of P/E cycles up to 30,000 times. Moreover, SH250-CFast 2.0 guarantees reliability of applications in harsh environments by implementing intelligent Flash Management algorithms and LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability.

Model No.	SH250
Interface	SATA III 6.0 Gb/s
Capacity	10GB - 160GB
Flash Type	3D pSLC
Endurance	30.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 5560MB/s \| SW: 515MB/s
DRAM	No

acon CFAST Card SATA III L/LX41

acon CFast delivers all the advantages of Flash Disk technology with the Serial ATA II I interface and is fully compliant with the standard CFast form factor. Given the features of the low power consumption, small form factor, and high shock resistance, CFast is an attractive solution to replace the conventional [PATA interfaced] CompactFlash card in industrial applications or markets where performance is a major concern. CFast, consisting of a SATA based 7 pin standard interface for data segment and 17 pin for power and controller segment, is designed to operate at a maximum operating frequency of 200 MHz with 30 MHz external crystal .

Model No.	L/LX41
Interface	SATA III 6.0 Gb/s
Capacity	32GB - 64GB
Flash Type	3D pSLC
Endurance	30.000 P/E Cycles
Standard Temperature	0°C +70°C
Extended Temperature	-40°C +85°C
Performance	SR: 550MB/s \| SW: 480MB/s
DRAM	No
